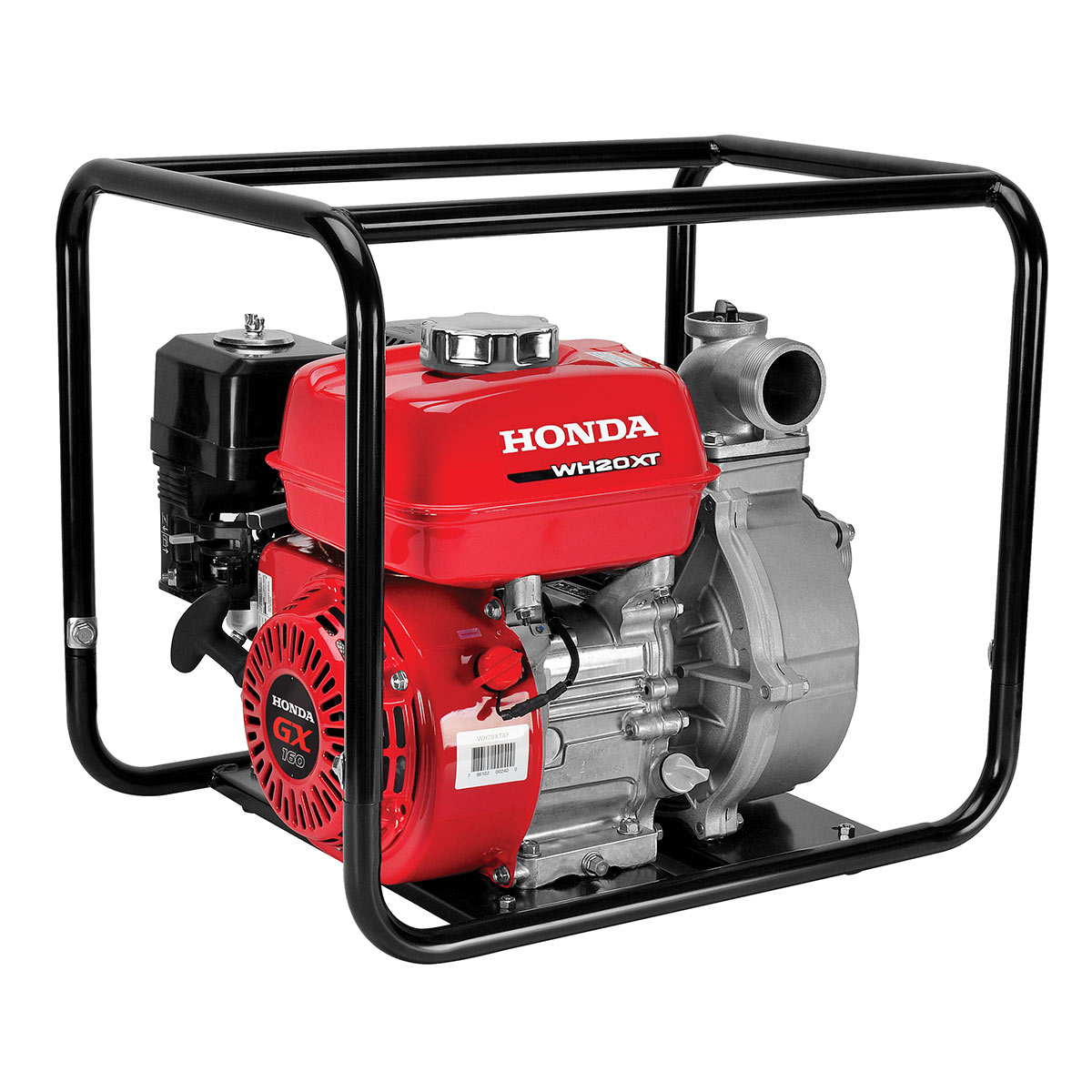

WH20 honda pump
The Honda WH20 water pump is a 2-inch high-pressure pump, ideal for use with sprinklers or nozzles, such as irrigation, or for pumping water over longer distances.
High pressure – ideal for sprinklers or nozzlesWith a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.
Easy starting Honda OHV commercial engineThe durable Honda GX series commercial-grade engine is easy to start and provides ample power for the toughest conditions.
119 gal./min capacity
Cast iron volute and impellerThe rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Heavy-duty full-frame protectionProtects the pump, while offering a convenient tie-down location for transport.
Lightweight aluminum case
Tekniset tiedot
MoottoriGX160
Siirtymä163cc
Bore and stroke2.7″ x 1.8″
Compression Ratio9.0:1
Oil AlertN/A
Pump TypeHigh Pressure, Centrifugal, Self-priming
VoluteRigid Mounted Cast Iron
ImpellerCast Iron
Mechanical Seal (Pump case/impeller)Carbon/Ceramic
Priming time80 sec. at 16.4 ft.
Drive system direct
Discharge capacity119 gals./min.
Suction port diameter2″ NPT
Discharge port diameter2″ NPT
Total head lift148 ft.
Suction head lifts 26 ft.
Maximum pressure64 psi
Solids handlingN/A
Dimensions (LxWxH)20.5″ x 15.7″ x 18.1″
Dry weight 60 lb.
Fuel Capacity0.82 gal
Run Time @ Max Discharge1.5 hr
Strainer Part #78325-YB7-702
Asuintakuu24 months
Kaupallinen takuu12 kuukautta
WARNING: California Prop 65 Information
Pump Performance
Accessories
A wide variety of hose kits, couplers, adaptors, and other accessories are available.
